Cut edge conveyor belt

The edge conveyor belt covering is made of high-quality nitrile rubber with excellent oil resistance, heat resistance, and corrosion resistance. It is suitable for conveying oily materials or in environments where it contacts various working oils. Both sides are neat, the operation is stable and does not deviate, and the material is precisely positioned. It uses high-strength wear-resistant materials, with high tensile and tear resistance, and strong load-bearing capacity. It is adaptable to high-temperature and chemical complex environments. The surface is anti-slip and anti-static, safe and reliable, and easy to maintain and replace, effectively improving conveying efficiency. Reinforced materials can be selected according to different customer needs.

ClassificationEdging conveyor belt

Whatsapp+86 18395653111

Mailboxcolin@bestbelting.com

Details

Uses

Common cut edge conveyor belt covering rubber can be produced as:

• Oil-resistant NBR, heat-resistant SBR, wear resistance level.

• China GB/T7984-2013//GB/T 32457-2015 standard: H24MPA, D18MPA, L15MPA level.

• American standard: RMA-I and RMA-II level.

• German DIN-22102 standard: W18MPA, X25MPA, Y20MPA, Z15MPA level.

• British standard BS-490 standard: M24MPA, N17MPA level.

• Australian AS1332-2000 standard: A17MPA, E14MPA, F14MPA, M24MPA, N17MPA, S14MPA level.

• South African SANS1173-2005 standard: A18MPA, X25MPA, M24MPA, N20MPA level.

Widely used in coal, mining, ports, metallurgy, power, chemical and other fields for material conveying.

Features

• Precise conveying: The edges of the cut edge conveyor belt are neat and precise, ensuring that the conveyor belt maintains a stable trajectory during operation and achieves precise material conveying. This is very important for precise positioning and assembly on automated production lines, such as in the electronics and automotive industries where high precision is required for component conveying, ensuring that components reach their designated positions accurately.

• High efficiency and energy saving: Its reasonable structural design and good cooperation with the driving device ensure uniform friction during operation, effectively reducing energy loss and improving conveying efficiency. In large-scale material conveying scenarios, such as mines and ports, it can save a lot of energy costs and meet the requirements of modern industry for energy saving and environmental protection.

• Adaptability to complex environments: Many industrial production environments abroad are complex, and cut edge conveyor belts can adapt to various harsh conditions such as high temperature, low temperature, humidity, and corrosion. For example, in the chemical and food processing industries, appropriate materials can be selected according to different environmental requirements, such as chemically resistant rubber materials or low-temperature resistant polyurethane materials, to ensure that the conveyor belt can still operate normally in special environments and extend its service life.

• Low maintenance cost: Cut edge conveyor belts usually have high quality, good wear resistance and tear resistance, reducing downtime and maintenance costs caused by frequent replacement of conveyor belts. At the same time, its edge design reduces material leakage and spillage during the conveying process, keeping the working environment clean and reducing cleaning costs.

• Good environmental performance: Under the background of increasingly stringent environmental protection requirements, the materials used in cut edge conveyor belts often meet relevant environmental protection standards and will not cause environmental pollution. Moreover, its high conveying efficiency helps to reduce waste during material transportation, indirectly achieving environmental benefits, which has been widely recognized in foreign markets that focus on sustainable development.

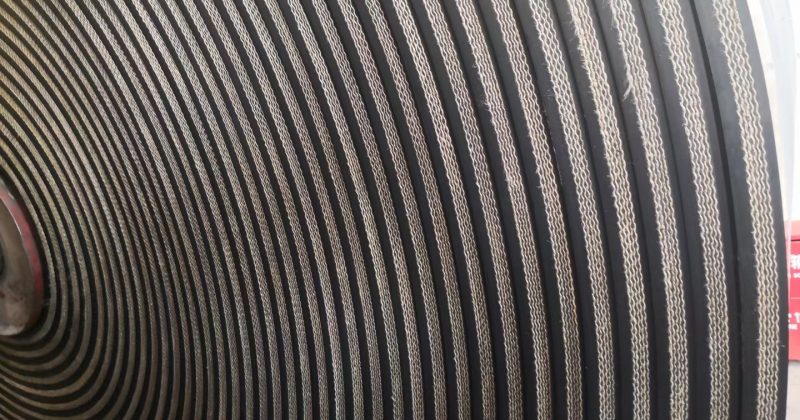

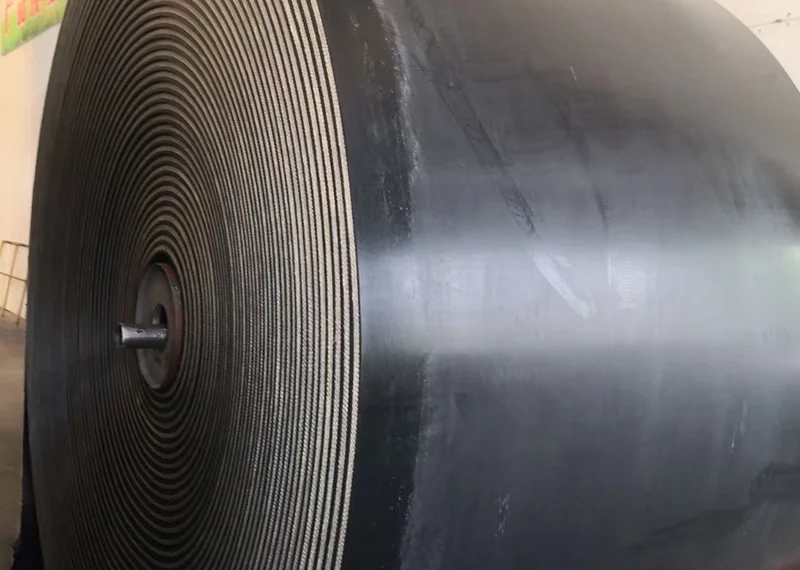

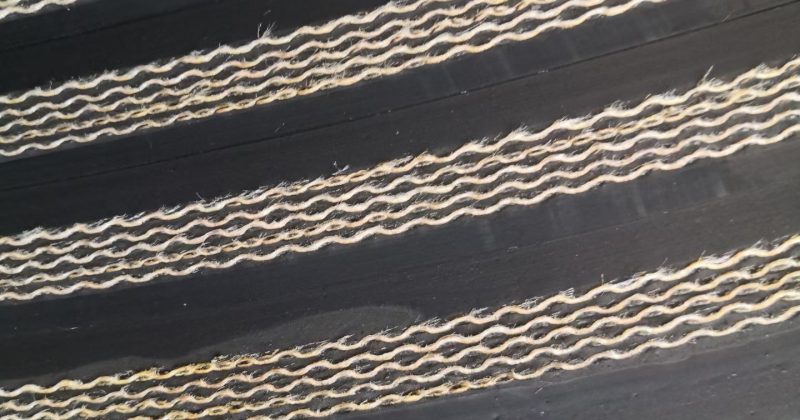

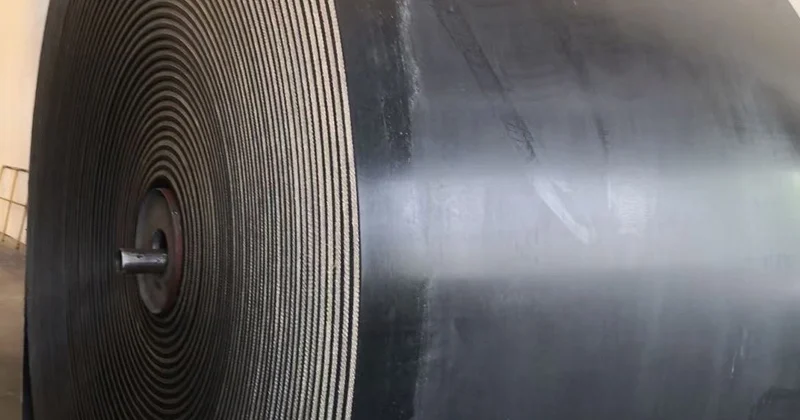

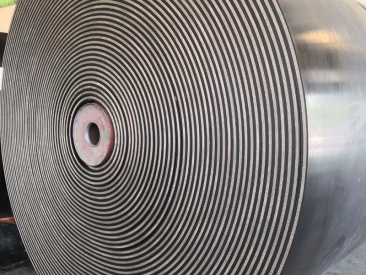

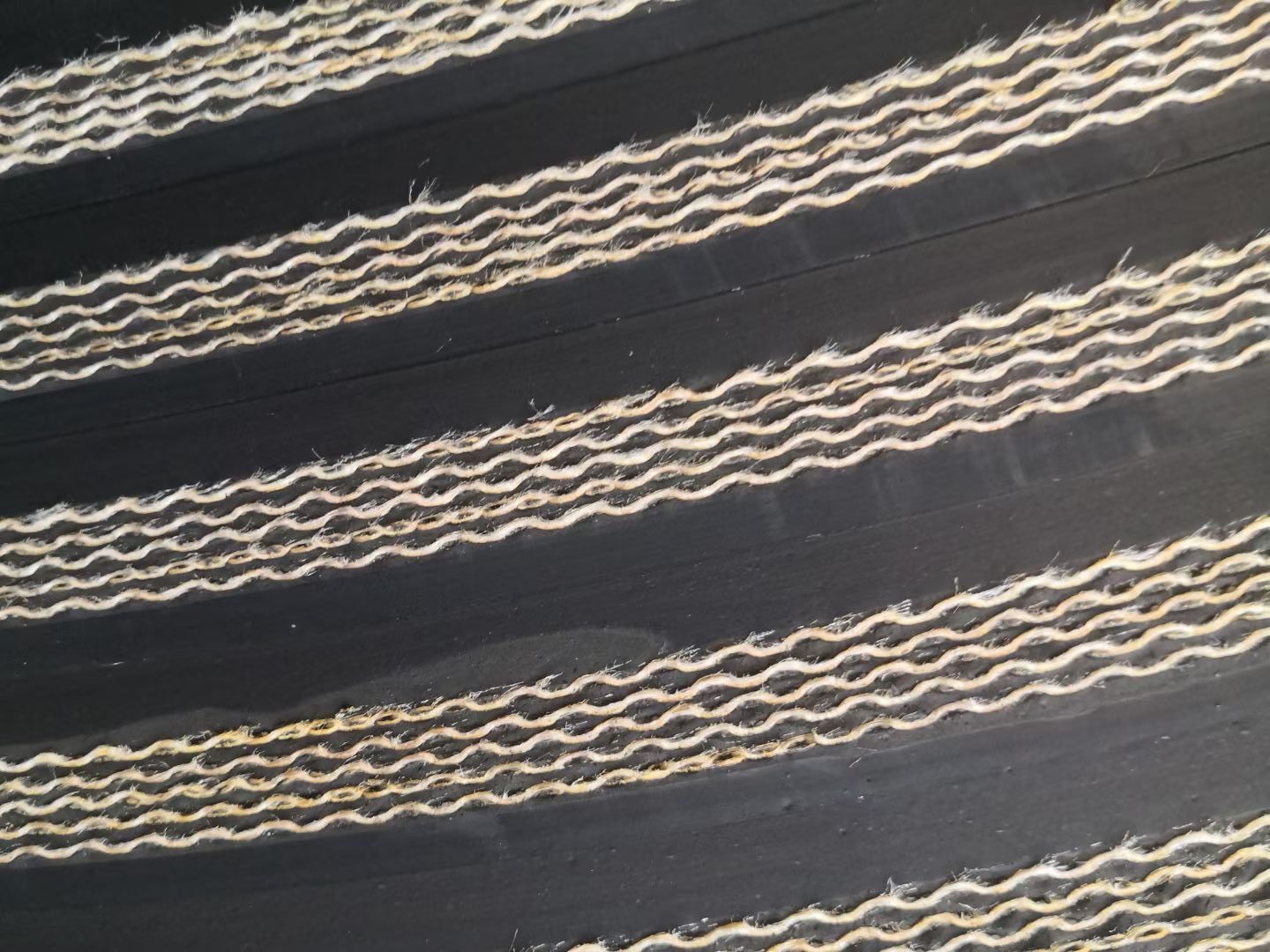

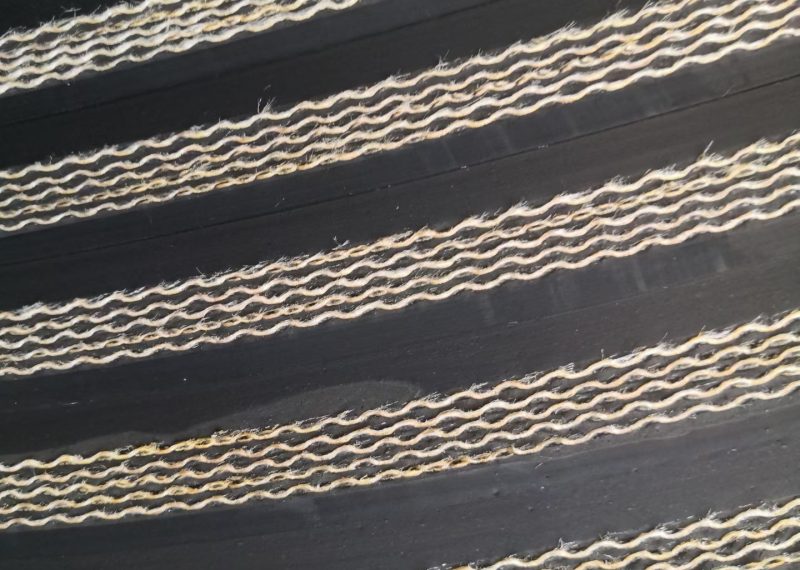

Product Photos

Specifications and technical parameters

Strength (KN/m)

Layers

Carcass Type

Belt Width (mm)

300

400

500

600

750

800

900

1000

1050

1200

1400

1600

1800

2000

2200

2400

3000

160

Nylon/EP Polyester/NN/EE

●

250

2~3

Nylon/EP Polyester/NN/EE

●

315

2~4

Nylon/EP Polyester/NN/EE

●

400

2~4

Nylon/EP Polyester/NN/EE

●

500

2~5

Nylon/EP Polyester/NN/EE

●

630

3~6

Nylon/EP Polyester/NN/EE

●

800

3~6

Nylon/EP Polyester/NN/EE

●

1000

3~6

Nylon/EP Polyester/NN/EE

●

1250

3~6

Nylon/EP Polyester/NN/EE

●

1400

3~6

Nylon/EP Polyester/NN/EE

●

1600

4~6

Nylon/EP Polyester/NN/EE

●

2000

4~6

Nylon/EP Polyester/NN/EE

●

2500

5~6

Nylon/EP Polyester/NN/EE

●

3150

5~6

Nylon/EP Polyester/NN/EE

●

Oil-resistant NBR/heat-resistant SBR covering rubber performance

Type	Rubber material	Allowable temperature ℃	Application field
COR	NBR/BR	-35~70	Conveying products containing animal and vegetable oils in cold regions
MOR	NBR/BR	-20~70	Most products containing animal and vegetable oils
OR	NBR	-20~70	Products containing mineral oil
HOR	NBR	-20~120	Hot asphalt

Cover Rubber Quality/Grade Standard Performance Parameters

German Standard DIN-22102
Grade	Tensile Strength ≥Ma	Elongation at Break ≥M%	Abrasion ≥mm ³	Inter-Ply Adhesion Strength (N/mm)	Adhesion Strength Between Cover and Ply (/mm)
Grade	Tensile Strength ≥Ma	Elongation at Break ≥M%	Abrasion ≥mm ³	Inter-Ply Adhesion Strength (N/mm)	Cover Thickness 0.8~1.5mm	Cover Thickness >1.5mm
W	18	400	90	≥5	3.5	4.5
X	25	450	120
Y	20	400	150
Z	15	350	250

British Standard BS 490
Grade	Tensile Strength ≥Ma	Elongation at Break ≥M%	Elongation at Break ≥M%	Inter-Ply Adhesion Strength (N/mm)	Adhesion Strength Between Cover and Ply (/mm)
Grade	Tensile Strength ≥Ma	Elongation at Break ≥M%	Elongation at Break ≥M%	Inter-Ply Adhesion Strength (N/mm)	Cover Thickness 0.8~1.5mm	Cover Thickness >1.5mm
M	24	450	–	≥5.25	3.15	4.5
N	17	400	–	≥5.25	3.15	4.5

Australian Standard AS 1332-2000
Grade	Tensile Strength ≥Ma	Elongation at Break ≥M%	Abrasion ≥mm ³	Inter-Ply Adhesion Strength (N/mm)	Adhesion Strength Between Cover and Ply (/mm)
Grade	Tensile Strength ≥Ma	Elongation at Break ≥M%	Abrasion ≥mm ³	Inter-Ply Adhesion Strength (N/mm)	Cover Thickness 0.8~1.5mm	Cover Thickness >1.5mm
A	17	400	70	6	4	4.8
E	14	300	–
F	14	300	–
M	24	450	125
N	17	400	200
S	14	300	250
S*	12	300	250

South African SANS 1173:2005
Grade	Tensile Strength ≥Ma	Elongation at Break ≥M%	Abrasion ≥mm ³	IInter-Ply Adhesion Strength (N/mm)	Adhesion Strength Between Cover and Ply (N/mm)
A	18	400	90	≥7	≥5
X	25	450	120
M	24	450	150
N	20	400	250

Specifications and Technical Parameters of Multi-layer Fabric Core Conveyor Belts

Fabric Type	Fabric Structure		Fabric model	Rubber belt thickness (mm/p)	Strength series (N/mm)					Cover Thickness		Width range (mm)
Fabric Type	Warp	Weft	Fabric model	Rubber belt thickness (mm/p)	2 layers	3 layers	4 layers	5 layers	6 layers	Top cover layer	Bottom cover layer	Width range (mm)
Nylon EP Polyester NN EE	Nylon	Nylon	Nylon/EP Polyester/NN/EE-100	1.00	200	300	400	500	600	0-12	0-10	300-2500
			Nylon/EP Polyester/NN/EE-125	1.05	250	375	500	625	750
			Nylon/EP Polyester/NN/EE-150	1.10	300	450	600	750	900
			Nylon/EP Polyester/NN/EE-200	1.20	400	600	800	1000	1200
			Nylon/EP Polyester/NN/EE-250	1.40	500	750	1000	1250	1500
			Nylon/EP Polyester/NN/EE-300	1.60	600	900	1200	1500	1800

Bond strength and elongation performance meet the following table

Bond strength, elongation performance
Belt core materiall	Bond strength			Elongation performance
	Between layers N/mm	Between cover and layer N/mm		Full thickness longitudinal breaking elongation	Full thickness longitudinal reference force elongation
	Between layers N/mm	Cover layer thickness ≤1.5mm	Cover layer thickness ≥1.5mm	Full thickness longitudinal breaking elongation	Full thickness longitudinal reference force elongation
Polyester canvas	≥5	≥4.5	≥5	≥10%	≤4%6

Chinese standard cover performance meets the following table

Chinese GB/T7984-2013 GB/T 32457-2015 Cover performance of adhesive tapes
Cover layer level	Tensile strength		Elongation at break	Abrasion loss	Change rate of tensile strength and elongation at break after aging
Cover layer level	Mpa	Kgf/cm²	%	mm ³	%
H	≥24	≥240	≥450	≤120	-25~ +25
D	≥18	180	≥400	≤100	-25~ +25
L	≥15	180	≥350	≤200	-25~ +25
