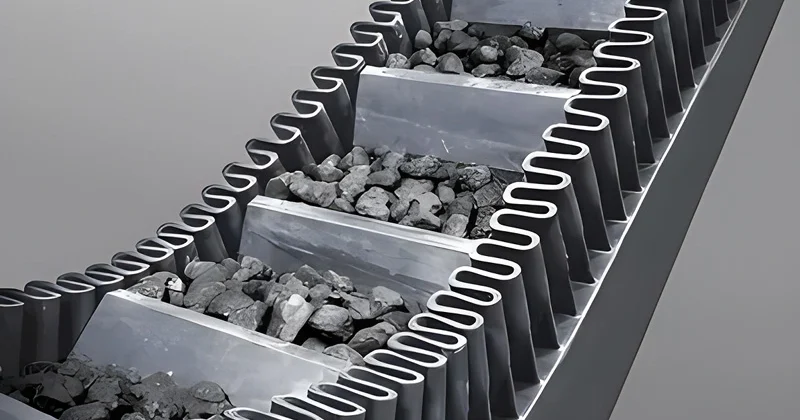

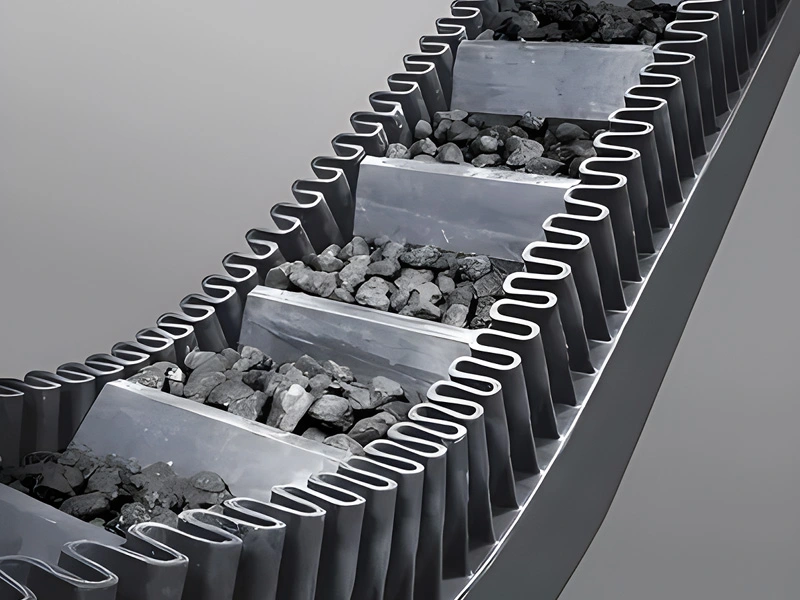

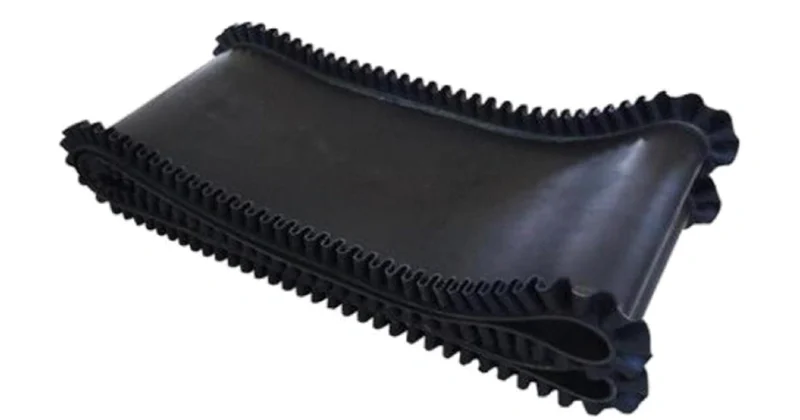

Corrugated sidewall conveyor belt

The sidewall conveyor belt must be able to withstand very high stresses and repeated bending that occur during high-capacity, steep-angle conveying. Due to site limitations or the need to elevate materials at a large inclination angle, this is to prevent the conveyed materials from scattering.

ClassificationHigh-angle bucket elevator belt

Whatsapp+86 18395653111

Mailboxcolin@bestbelting.com

Details

Uses

Due to site limitations or the need to lift materials at a large inclination angle, in order to prevent the scattering of conveyed materials, the sidewall conveyor belt must be able to withstand very high stresses and repeated bending that occur during high-volume, steep-angle conveying. High-quality, very low elongation polyester fabrics are used to provide higher stiffness values. This product is suitable for conveying materials under large inclination angles (0°-90°).

Features

• Conveying materials can achieve a large inclination angle up to 90°

• Large conveying capacity, materials will not scatter. Conveying can transition from horizontal to inclined, and from inclined to horizontal angles.

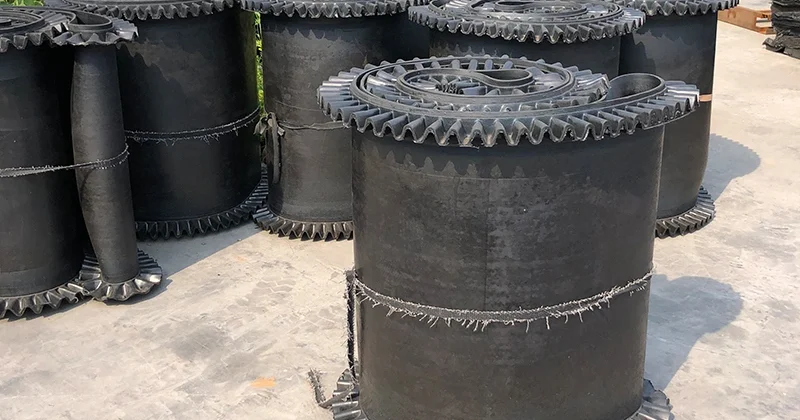

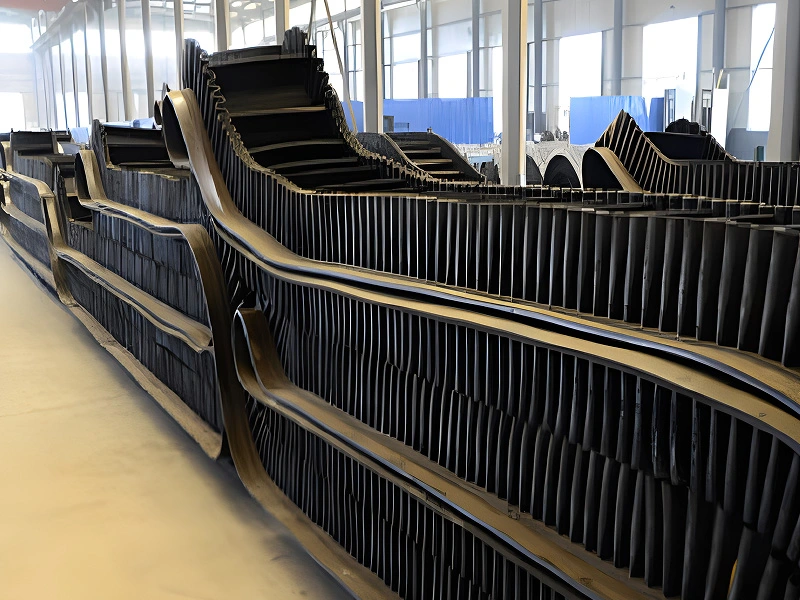

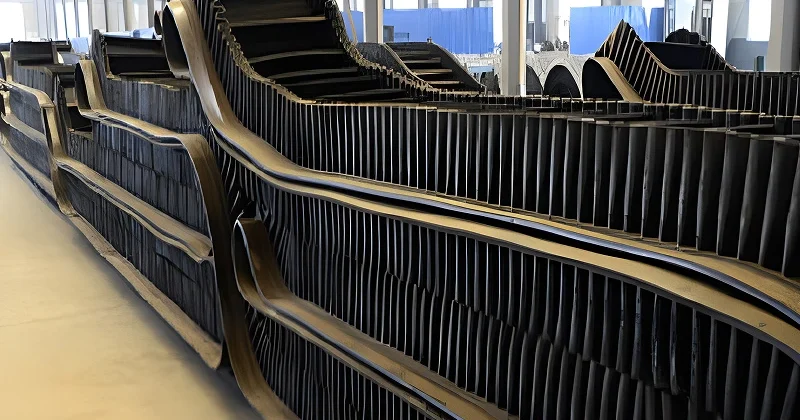

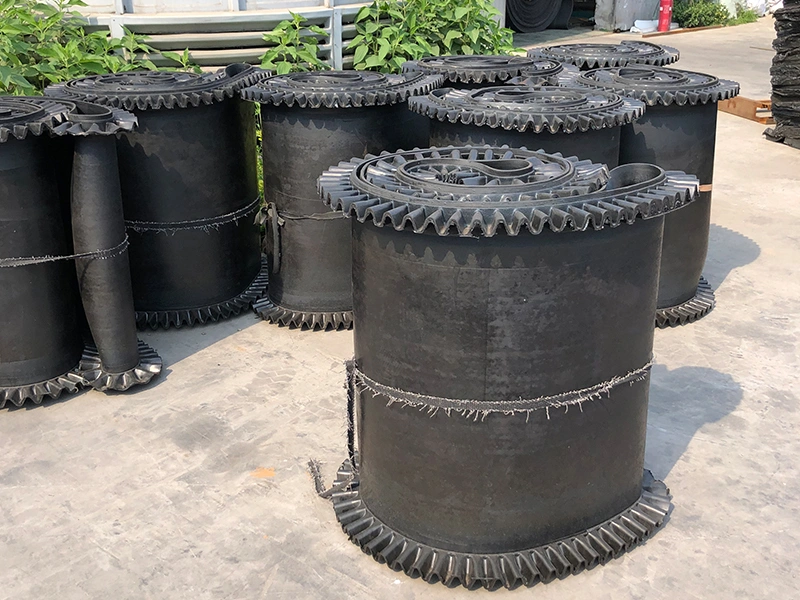

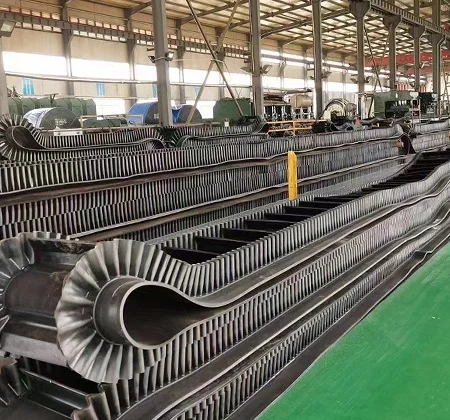

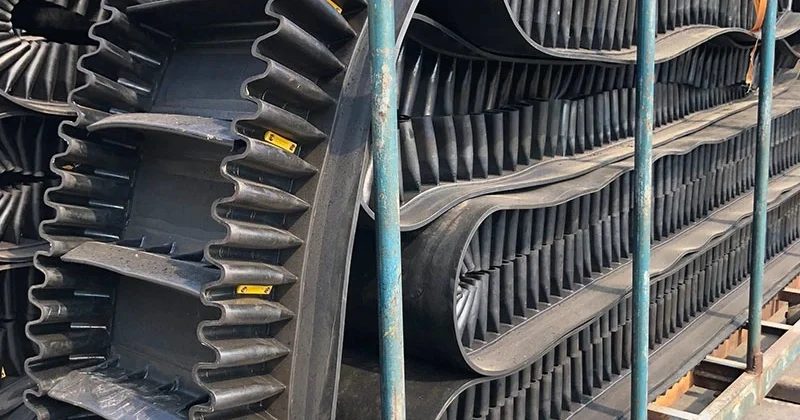

Product Real Shots

Standards

Type	Tensile Strength N/mm	Kind	Number of Carcass Layers	Cover Rubber Thickness (mm)	Weight (kg/m ²)	Minimum Roller Diameter mm
XE	200	Ordinary	2	2×2	9.8	200
XOE	315	Ordinary Heat Resistant Flame Retardant	2+1	4×2	11.3	315
	500		3+1	4×2	13.2	400
	630		4+1	4×2	14.9	500
	800		5+1	4×2	17.8	630
	1000		6+1	5×3	22.0	800
XUE	315	Ordinary	2+1	4×3	12.7	315
	500		3+1	4×3	14.5	400
	630		4+1	4×3	16.3	500
XDE	315	Ordinary	2+2	4×3	13.7	315
	500		3+2	4×3	15.5	400
	630		4+2	4×3	17.3	500

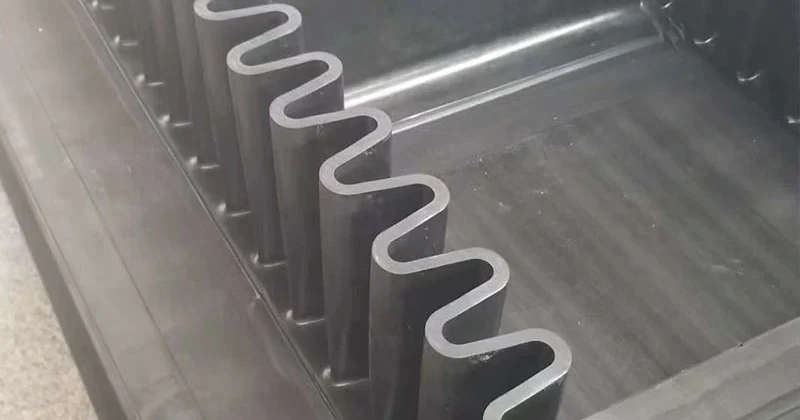

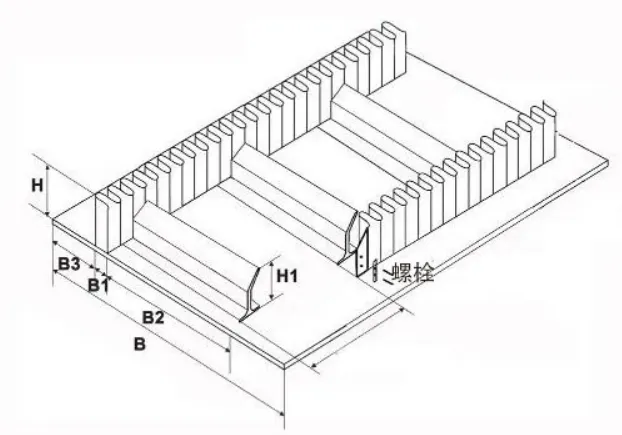

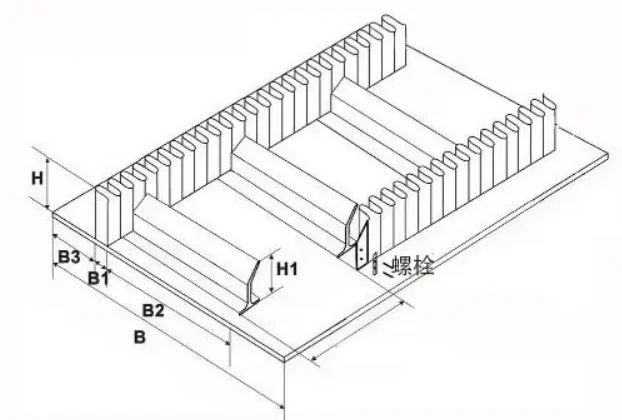

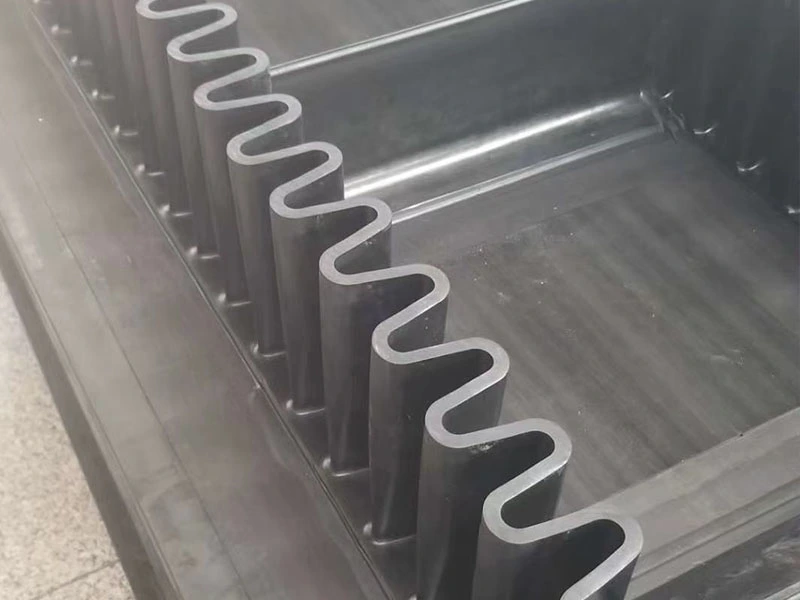

Corrugated Sidewall

The sidewall is made of high-quality rubber.

There are also two types: pure rubber (BG) and rubber with fabric reinforcement layer (BGT)

Conveying Occasions	Height	Sidewall Width	Bottom Width	Weight	Minimum Roller Diameter
Conveying Occasions	mm	mm	mm	mm	mm
N	80	44	50	1.6	200
N	100	44	50	1.8	250
S	120	66	75	3.1	320
	160	66	75	4.1	400
	200	66	75	5.1	500
	240	66	75	6.1	550
ES	300	88	100	12.0	700
ES	400	88	100	16.0	900

Note: N-Light Load; S-Medium Load; ES-Heavy Load.

Bulkhead

The bulkhead is made of high-quality rubber and has a high elastic support function.

There are also two types: pure rubber, rubber with fabric reinforcement layer

T	Type	T75	T110
	Height (mm)	75	110
	Weight (Kg/m)	1.65	2.20
	Minimum Roller Diameter (mm)	200	300
TC	Type	TC110	TC140	TC180	TC220	TC260
	Height (mm)	110	140	180	220	260
	Weight (Kg/m)	2.6	5.5	7.0	8.0	10.2
	Minimum Roller Diameter (mm)	350	370	450	500	600
TCS	Type					TCS280	TCS360
	Height (mm)					280	360
	Weight (Kg/m)					18.5	22.0
	Minimum Roller Diameter (mm)					700	700

Cover Rubber Quality/Grade Standard Performance Parameters

Chinese GB/T7984-2013 GB/T 32457-2015 Conveyor Belt Cover Layer Performance

Type	Tensile Strength (ISO37) Mpa	Elongation at Break (ISO37) %	Abrasion (ISO4649) mm ³
H	24	450	120
D	18	400	100
L	15	350	200

German Standard DIN-22102
Grade	Tensile Strength ≥Ma	Elongation at Break ≥M%	Abrasion ≥mm ³	Bond Strength Between Fabric Layers (N/mm)	Bond Strength Between Cover and Fabric Layers (/mm)
					Cover Thickness 0.8~1.5mm	Cover Thickness >1.5mm
W	18	400	90	≥5	3.5	4.5
X	25	450	120
Y	20	400	150
Z	15	350	250

British Standard BS 490
Grade	Tensile Strength ≥Ma	Elongation at Break ≥M%	Abrasion ≥mm ³	Bond Strength Between Fabric Layers (N/mm)	Bond Strength Between Cover and Fabric Layers (/mm)
					Cover Thickness 0.8~1.5mm	Cover Thickness >1.5mm
M	24	450	–	≥5.25	3.15	4.5
N	17	400	–

Australian Standard AS 1332-2000
Grade	Tensile Strength ≥Ma	Elongation at Break ≥M%	Abrasion ≥mm ³	Bond Strength Between Fabric Layers (N/mm)	Bond Strength Between Cover and Fabric Layers (/mm)
Grade	Tensile Strength ≥Ma	Elongation at Break ≥M%	Abrasion ≥mm ³	Bond Strength Between Fabric Layers (N/mm)	Cover Thickness 0.8~1.5mm	Cover Thickness >1.5mm
A	17	400	70	6	4	4.8
E	14	300	–
F	14	300	–
M	24	450	125
N	17	400	200
S	14	300	250
S*	12	300	250

South African SANS 1173:2005
Grade	Tensile Strength ≥Ma	Elongation at Break ≥M%	Abrasion ≥mm ³	Bond Strength Between Fabric Layers (N/mm)
					Bond Strength Between Cover and Fabric Layers (N/mm)
A	18	400	90	≥7	≥5
X	25	450	120
M	24	450	150
N	20	400	250

Specifications and Technical Parameters of Corrugated Sidewall Multi-layer Fabric Core Conveyor Belt

Fabric Type	Fabric Structure		Fabric Model	Rubber Belt Thickness (mm/p)	Strength Series (N/mm)					Covering Glue Thickness		Width Range (mm)
Fabric Type	Warp	Weft	Fabric Model	Rubber Belt Thickness (mm/p)	2 Layers	3 Layers	4 Layers	5 Layers	6 Layers	Upper Covering Layer	Lower Covering Layer	Width Range (mm)
Nylon EP Polyester NN EE	Nylon	Nylon	Nylon/EP Polyester/NN/EE-100	1.00	200	300	400	500	600	0-12	0-10	300-2500
			Nylon/EP Polyester/NN/EE-125	1.05	250	375	500	625	750
			Nylon/EP Polyester/NN/EE-150	1.10	300	450	600	750	900
			Nylon/EP Polyester/NN/EE-200	1.20	400	600	800	1000	1200
			Nylon/EP Polyester/NN/EE-250	1.40	500	750	1000	1250	1500
			Nylon/EP Polyester/NN/EE-300	1.60	600	900	1200	1500	1800

Bonding strength and elongation performance meet the following table

Bonding strength, elongation performance
Belt Core Material	Bonding Strength			Elongation Performance
	Interlayer N/mm	Covering Layer and Fabric Layer N/mm		Full Thickness Longitudinal Tensile Elongation	Full Thickness Longitudinal Reference Force Elongation
		Covering Layer Thickness ≤1.5mm	Covering Layer Thickness ≥1.5mm
Polyester Canvas	≥5	≥4.5	≥5	≥10%	≤4%6

The covering performance of the tape meets the following table

China GB/T7984-2013 GB/T 32457-2015 Tape Covering Layer Performance Tape Covering Layer Performance
Covering Layer Level	Tensile Strength		Elongation at Break	Abrasion Loss	Change Rate of Tensile Strength and Elongation at Break After Aging
Covering Layer Level	Mpa	Kgf/cm²	%	mm ³	%
H	≥24	≥240	≥450	≤120	-25~ +25
D	≥18	180	≥400	≤100	-25~ +25
L	≥15	150	≥350	≤200	-25~ +25

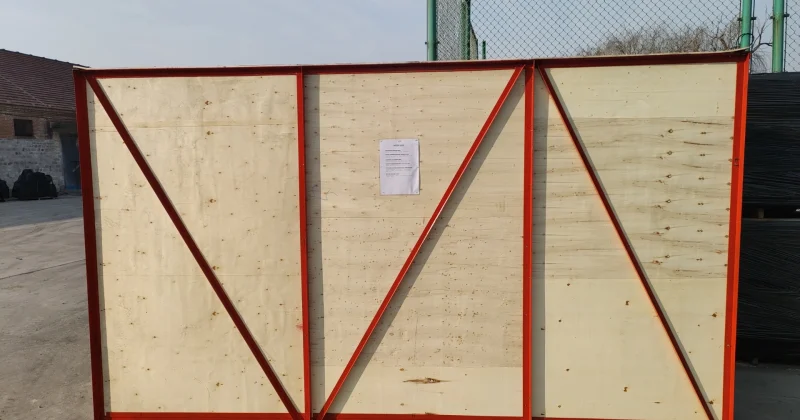

Packaging and transportation

Packaging Details

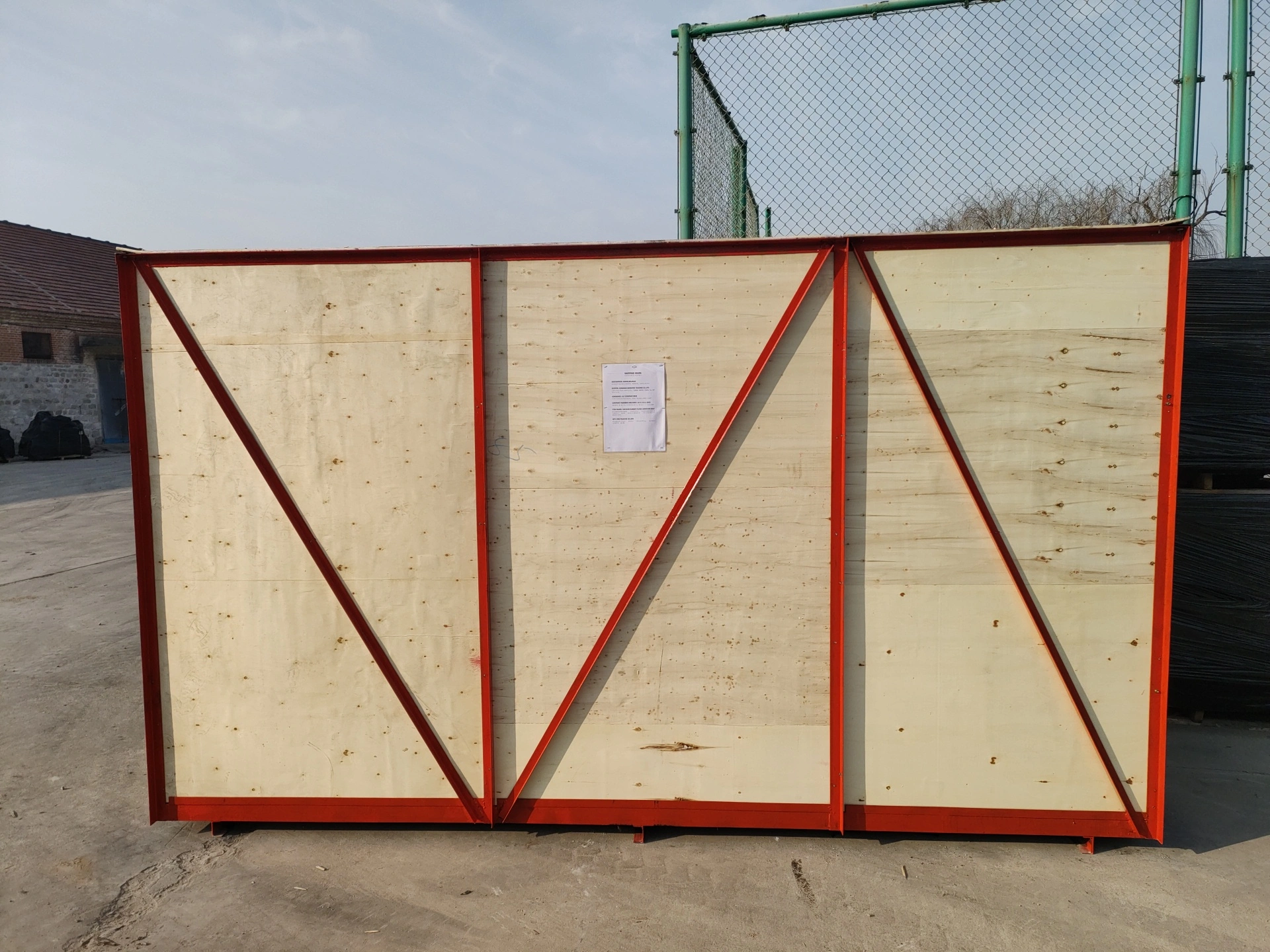

1. Waterproof nylon packaging, wooden box, bottom steel pallet or wooden pallet.
