Aramid conveyor belt (aramid fiber reinforced rubber conveyor belt)

Acid and alkali resistant, chemically resistant conveyor belt

Aramid conveyor belts combine high-strength, lightweight materials with multi-functional covering materials, making the product perfectly suitable for a wide range of applications. Aramid fiber reinforced rubber conveyor belts are high-performance conveyor products made by combining aramid fibers as the core reinforcing material with rubber through a special process.

ClassificationAramid conveyor belt

Whatsapp+86 18395653111

Mailboxcolin@bestbelting.com

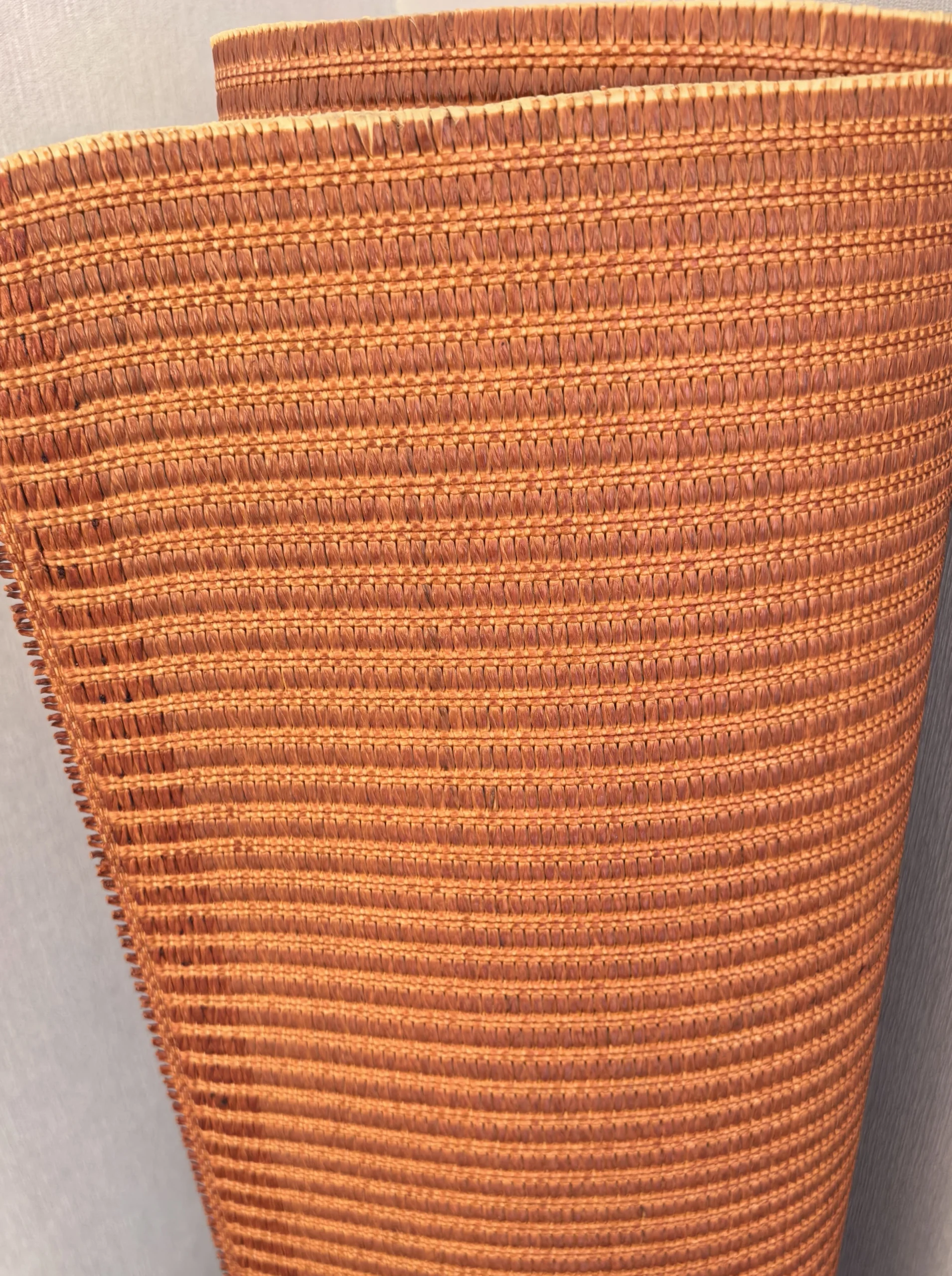

Details (Aramid Fabric Core)

Product Description

• Aramid fiber reinforced rubber conveyor belts are high-performance conveyor products made by combining aramid fiber as the core reinforcing material with rubber through a special process.

• Core Advantages: With the ultra-high strength characteristics of aramid fiber, under the same specifications, its tensile strength is comparable to that of steel wire core conveyor belts, and its density is only 1/5 of steel, making the conveyor belt light and strong; it has excellent high-temperature performance and can be used continuously at 300℃, and only begins to decompose above 500℃. At the same time, it has good flame retardancy, is difficult to burn when exposed to open flames, and self-extinguishes when removed from the flame; low elongation rate ensures long-term stable operation and reduces frequent tension adjustments; strong chemical stability, fearless of acids, alkalis, water vapor and corrosive media erosion.

• Structural Design: Mostly adopts a single-layer warp and weft structure, with the longitudinal aramid yarn arranged in a straight line to provide longitudinal strength, and the weft nylon cords, etc., to ensure lateral stability; the belt body is thin and flexible, with good bending performance, suitable for small-diameter rollers, and reduces equipment energy consumption.
Application Scenarios: In harsh working conditions such as mines and ports with heavy loads and high drops, it can efficiently transport materials such as ore and coal; in the metallurgical and cement industries, it is suitable for high

• Material Transportation; in the logistics field, it meets the needs of high speed, wear resistance, and low friction for express sorting and cargo transportation.

Uses

• Mining Industry: Used for ore transportation, capable of withstanding heavy loads and high-drop material transportation, such as transporting mined ore from underground or mining areas to surface processing plants in coal mines and metal mines.
• Port Industry: Used in ports for loading and unloading and transporting various goods, such as coal, ore, and containers, adapting to frequent starts and stops and high-intensity operations.
• Metallurgical Industry: Can transport sintered ore, coke, etc., in high-temperature environments, from sintering plants to ironmaking plants, meeting the material transportation needs of the metallurgical production process.
• Cement Industry: Used for transporting materials such as limestone, clay, and clinker in the cement production process, playing a role in both raw material extraction and material flow within the production workshop.
• Power Industry: In thermal power plants, it can be used to transport fuels such as coal, transporting coal from coal storage yards to boiler workshops to ensure stable power generation.
• Logistics Industry: In logistics distribution centers and express sorting centers, it is used for cargo transportation and sorting. Its low friction and high wear resistance help improve cargo transportation efficiency and accuracy.

Features

• Low Energy Consumption

The warp and weft structure consists of longitudinal aramid cords and lateral nylon cords that provide protection on both sides. The lightweight Double Arrow brand aramid conveyor belt can reduce the power consumption of the conveyor. Using low rolling resistance energy-saving rubber as the non-working surface can achieve higher energy saving.

• Impact Resistance

Due to the toughness of aramid fiber, it can prevent the conveyor belt from being punctured by sharp transported objects. Even with a high drop distance, it can reduce damage to the conveyor belt.

• High Heat Resistance and Fire Performance

High heat resistance prevents damage from high-temperature transported objects, and even burning objects are difficult to penetrate the aramid core.

• Corrosion Resistance

Aramid itself has excellent media resistance and good chemical and corrosion resistance.

• Optimized Belt Design, Long Service Life

Because the belt body is a single-layer design, the belt body is soft and light, with ideal strength utilization, and is very fatigue-resistant throughout its service life. The top and bottom cover rubbers meet the high requirements for wear resistance and impact resistance, providing ideal protection for the high-value aramid fabric.

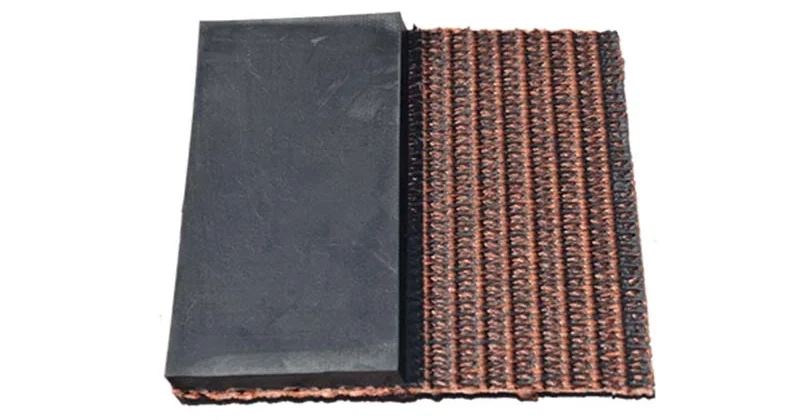

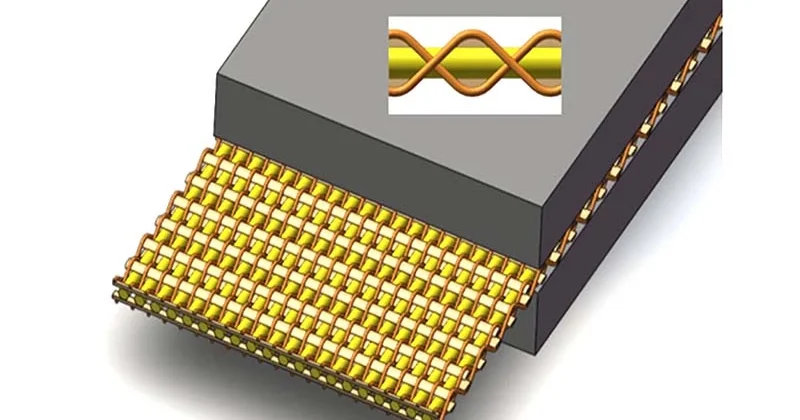

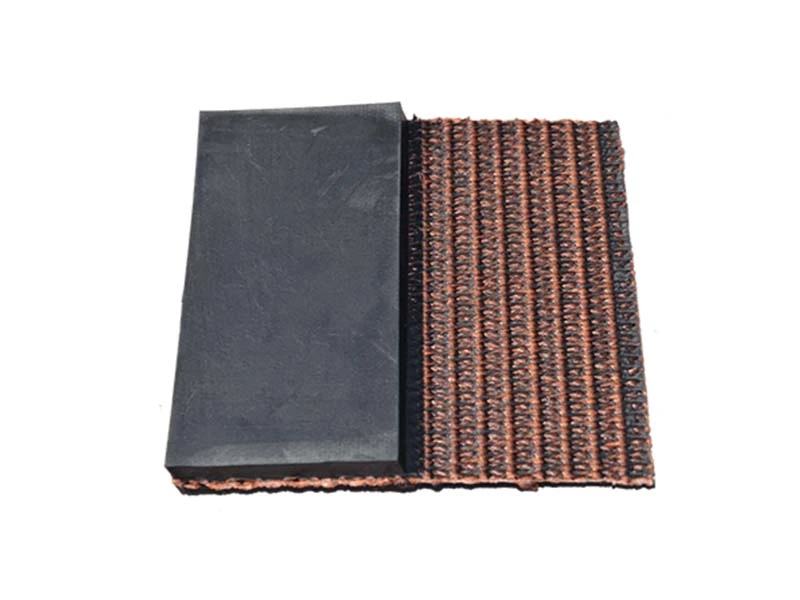

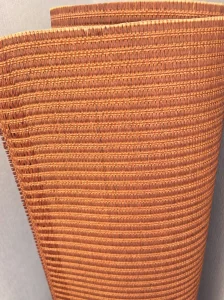

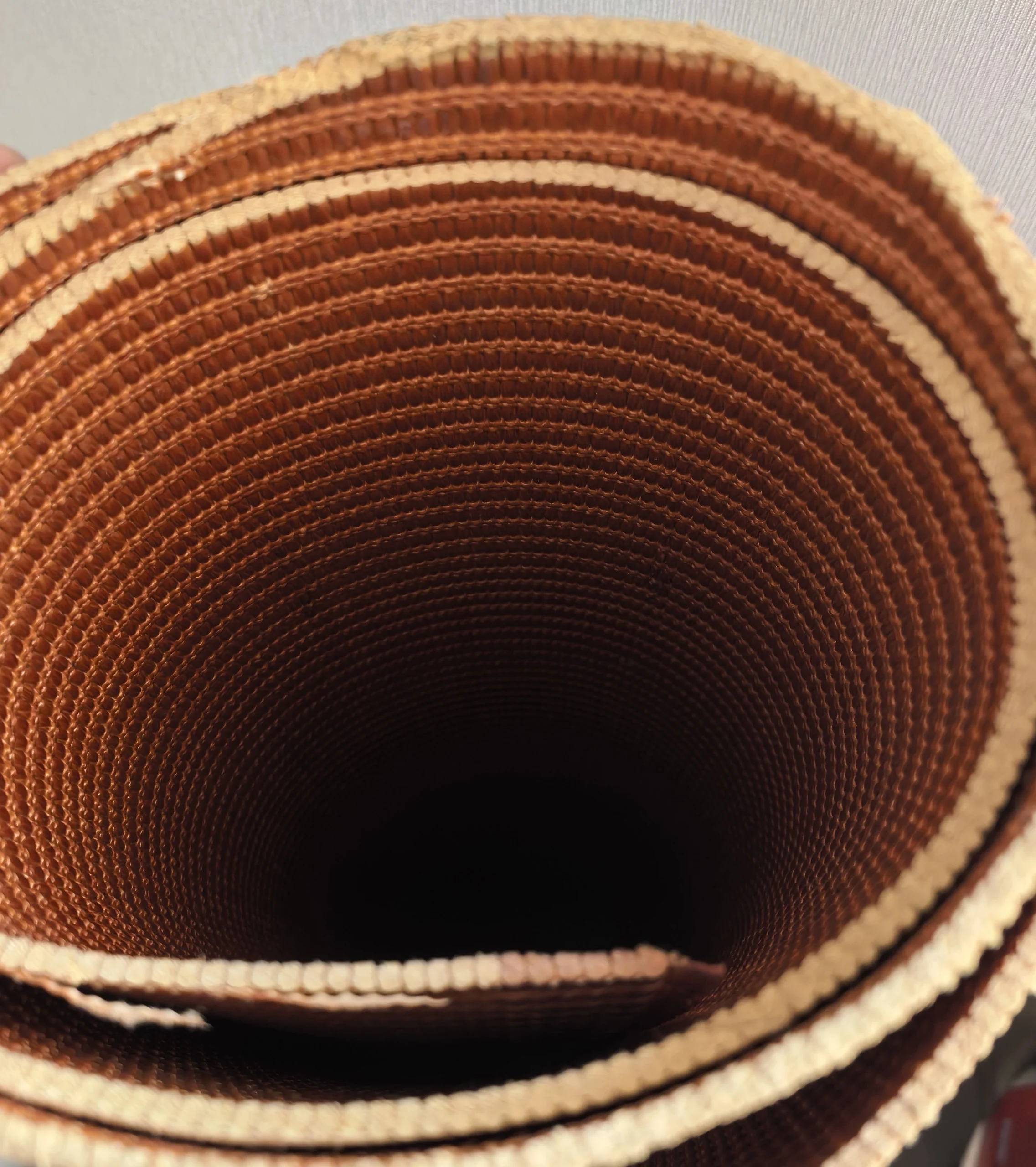

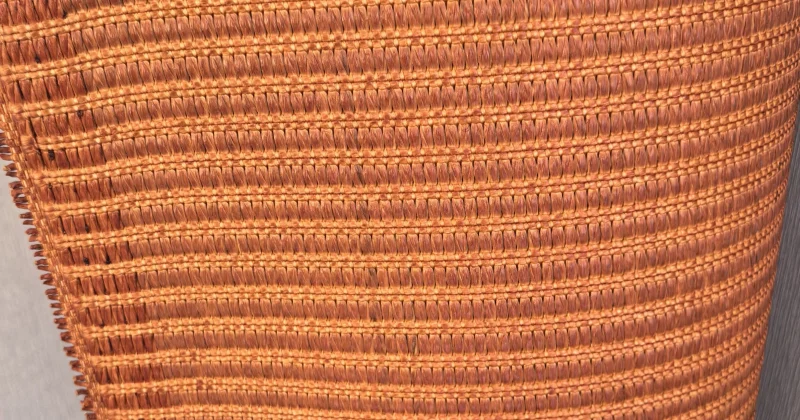

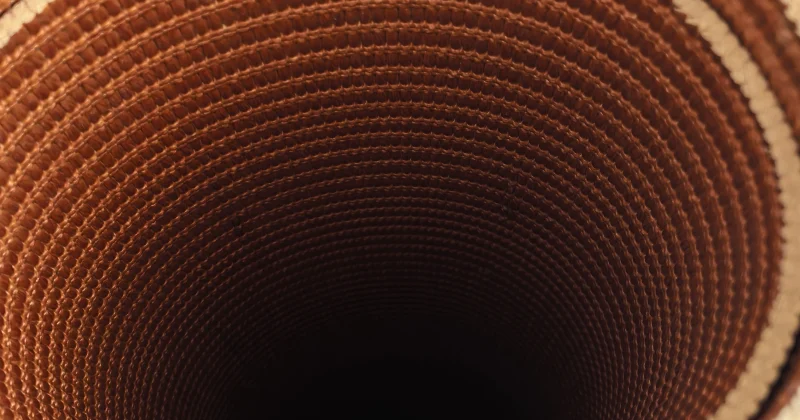

Standard Structure and Real Shots

Specifications and Technical Parameters of Aramid Fabric Core Conveyor Belts

Specifications	Minimum Longitudinal Tensile Strength (N/mm)	Minimum Transverse Tensile Strength (N/mm)	10% Load Elongation (max.)	Cover Rubber Standard mm	Conveyor Belt Thickness mm	Conveyor Belt Weight Kg/m²
DPP800	800	150	0.5	6+2	11.5	11.0
DPP1000	1000	150	0.5	6+2	11.5	11.1
DPP1250	1250	150	0.5	6+2	11.6	11.3
DPP1600	1600	180	0.5	6+3	12.0	12.9
DPP1800	1800	180	0.5	6+3	12.3	13.1
DPP2000	2000	180	0.5	6+3	14.5	15.9
DPP2250	2250	180	0.5	6+3	14.5	16.1
DPP2500	2500	200	0.5	6+3	14.6	16.3
DPP3150	3150	200	0.5	6+3	16.3	17

Cover Rubber Quality/Grade Standard Performance Parameters

China GB/T7984-2013 GB/T 32457-2015

Type	Tensile Strength (ISO37) Mpa	Elongation at Break (ISO37) %	Abrasion (ISO4649) mm ³
H	24	450	120
D	18	400	100
L	15	350	200
K ²	15	350	200
Note: K ² is a general flame-retardant and anti-static belt, conforming to ISO340 and ISO284 standards.

German Standard DIN-22102
Grade	Tensile Strength ≥Ma	Elongation at Break ≥M%	Abrasion ≥mm ³	Interlaminar bond strength (N/mm)	Bond strength between cover layer and fabric layer (/mm)
					Cover layer thickness 0.8~1.5mm	Cover layer thickness >1.5mm
W	18	400	90	≥5	3.5	4.5
X	25	450	120
Y	20	400	150
Z	15	350	250

British Standard BS 490
Grade	Tensile Strength ≥Ma	Elongation at Break ≥M%	Abrasion ≥mm ³	Interlaminar bond strength (N/mm)	Bond strength between cover layer and fabric layer (/mm)
					Cover layer thickness 0.8~1.5mm	Cover layer thickness >1.5mm
M	24	450	–	≥5.25	3.15	4.5
N	17	400	–

Australian Standard AS 1332-2000
Grade	Tensile Strength ≥Ma	Elongation at Break ≥M%	Abrasion ≥mm ³	Interlaminar bond strength (N/mm)	Bond strength between cover layer and fabric layer (/mm)
Grade	Tensile Strength ≥Ma	Elongation at Break ≥M%	Abrasion ≥mm ³	Interlaminar bond strength (N/mm)	Cover layer thickness 0.8~1.5mm	Cover layer thickness >1.5mm
A	17	400	70	6	4	4.8
E	14	300	–
F	14	300	–
M	24	450	125
N	17	400	200
S	14	300	250
S*	12	300	250

South African SANS 1173:2005
Grade	Tensile Strength ≥Ma	Elongation at Break ≥M%	Abrasion ≥mm ³	Interlaminar bond strength (N/mm)
					Bond strength between cover layer and fabric layer (N/mm)
A	18	400	90	≥7	≥5
X	25	450	120
M	24	450	150
N	20	400	250

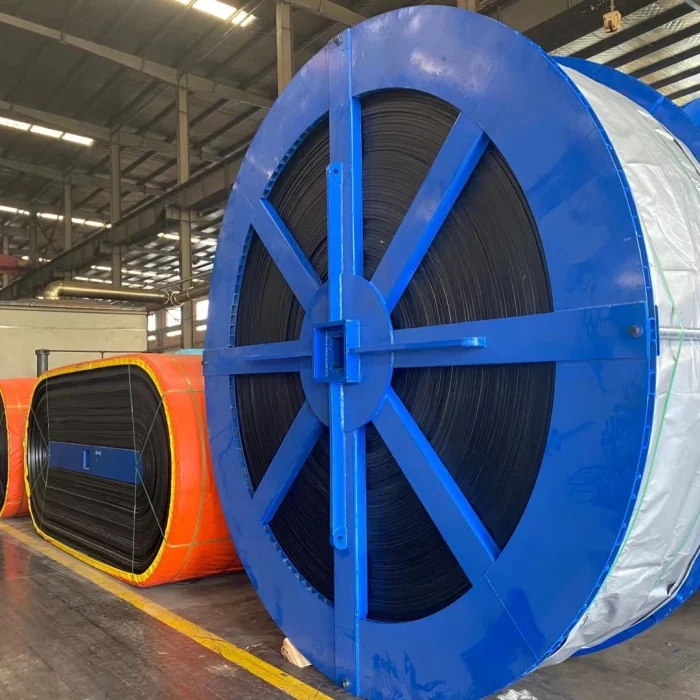

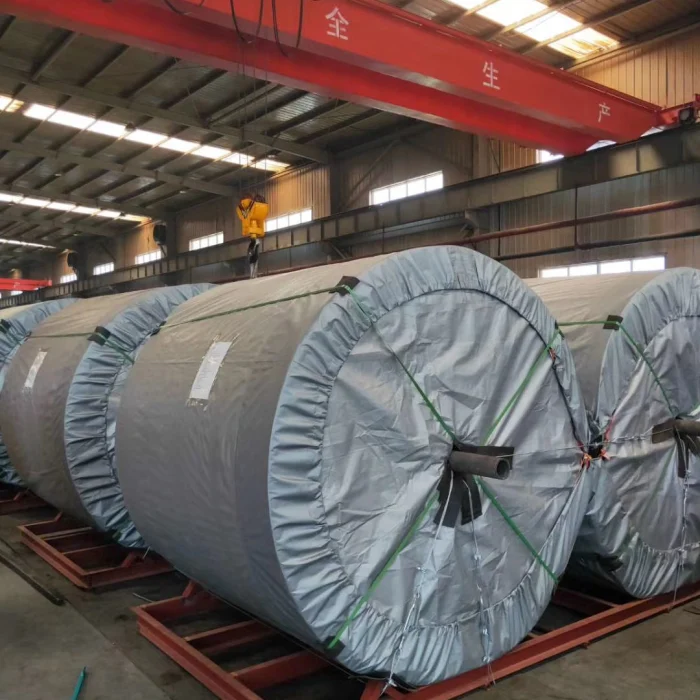

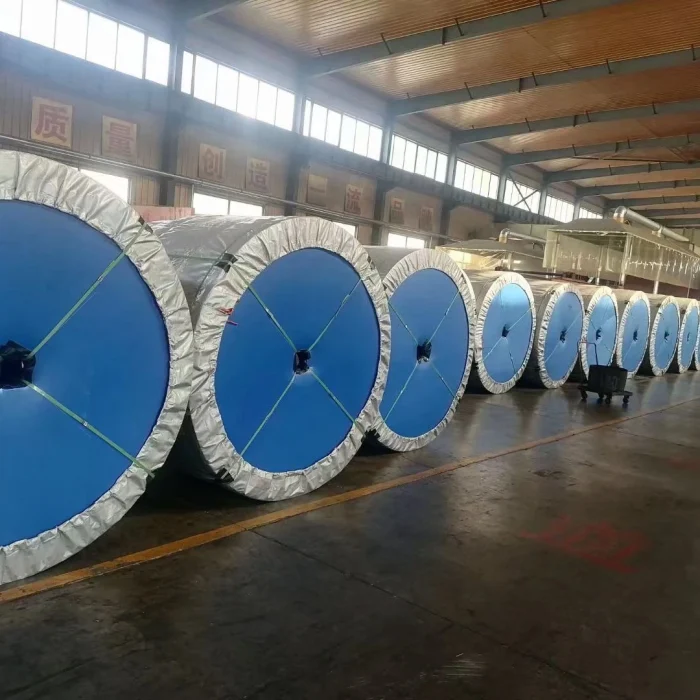

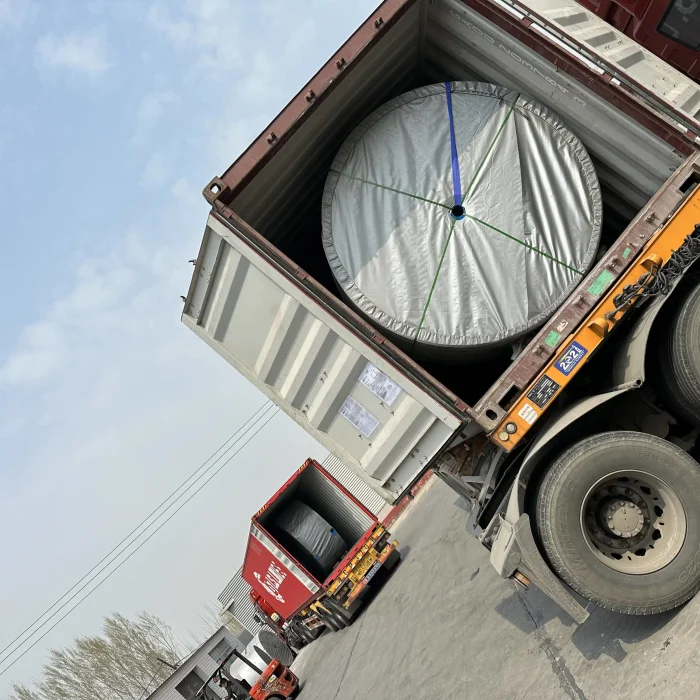

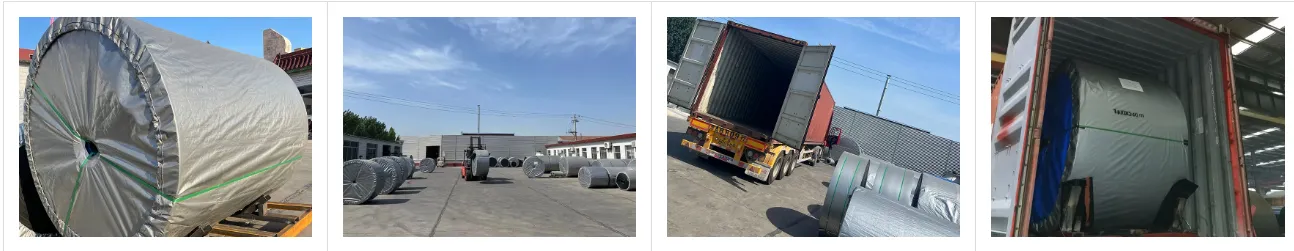

Packaging and Transportation

Packaging and Transportation

Packaging Details

1. Waterproof nylon packaging, with a bottom steel pallet or wooden pallet.

2. Standard and appropriate export packaging.

3. Customized packaging is available according to customer requirements.

Frequently Asked Questions

1. Can I customize rubber pads/sheets/blocks to meet my business needs?

►Yes, we are specialized in manufacturing custom conveyor belts ， We focus on customized conveyor belt solutions. We work closely with our clients to customize products such as belt width, thickness, material composition, and various qualities based on their specific operational requirements. This ensures that our conveyor belts perform optimally in diverse industrial settings.

2. What payment methods do you accept?

►We offer flexible payment options to meet customer needs. Common payment methods include Telegraphic Transfer (T/T) and Letter of Credit (L/C) ，especially for large orders. We can also negotiate other payment methods based on mutual agreement.

3. What after-sales service do you provide? How do you guarantee your quality?

►We provide comprehensive after-sales service support, including 24/7 technical support, installation assistance, and maintenance advice 。We also provide regular follow-up services to ensure smooth product operation and long-term customer satisfaction! We have an in-house testing laboratory and adhere to the principle of quality assurance before shipment! For many years, we have been one of the suppliers to internationally renowned companies, and our customers are located in various countries and industries, including mining, stone crushing, sand washing, ports, power plants, metallurgy, chemicals, coal, steel plants, cement plants, and construction, with our excellent quality widely praised.

4. How do I place an order? What is the delivery time?

►You can contact us via WeChat, WhatsApp, phone, email, and website to place an order. For regular models, 5-7 days delivery ，the delivery time for other customized products depends on the product type and customization requirements.

5. Can I get a sample for inspection and testing?

►Yes, samples can be provided for testing before bulk orders. Samples are created according to customer requirements, allowing customers to evaluate the performance of the belts and rollers.

Can I print my logo on the conveyor belt products?

►Yes, we are a custom manufacturer, supporting processing, OEM, please inform us of your logo or design before mass production.

Experienced and strong team

Our global sales and R&D teams go beyond transactions, providing personalized support at every stage of the customer journey.

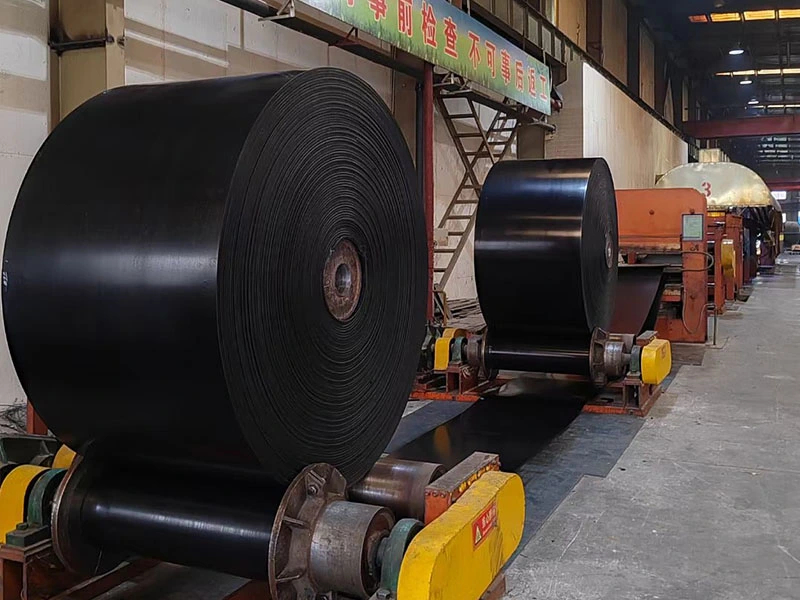

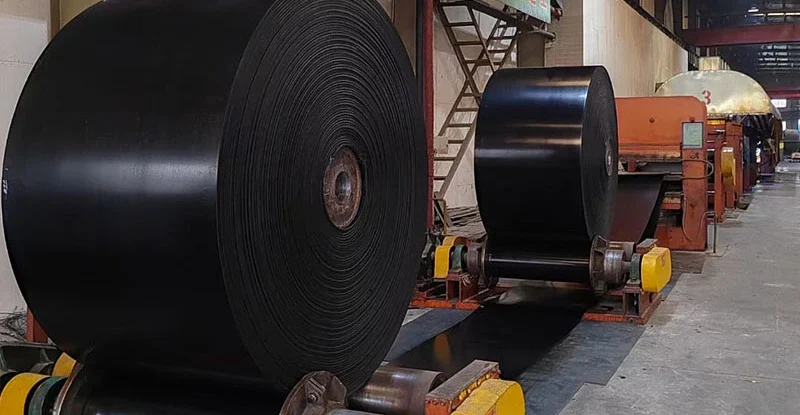

First-Class Advanced Production Equipment

We have invested heavily in advanced conveyor belt production lines, including automated systems that ensure the precision, reliability, and scalability of our products.

First-Class Testing Equipment

We have in-house testing equipment to ensure that every conveyor belt we produce undergoes rigorous quality control. From tensile strength and wear resistance to high-temperature resistance, we can meet your requirements.

Successful Customer Collaboration

We have established long-term partnerships with customers in the cement, mining, power plants, chemical, steel, coal, mining, and grain industries, fully demonstrating the trust and confidence that enterprises have in us.

Why Choose Our Conveyor Belts

1. Engineering Design and Consulting

FANGNUO Rubber Conveyor Belt is one of the best custom belt manufacturers in China. Our conveyor belts are ideal for handling bulk materials, various heavy-duty and abrasive materials, successfully meeting the needs of various industries, including stone crushing and screening, sand washing, fertilizer, grain conveying, steel plants, power plants, cement plants, metallurgy, coal, ports, construction, etc. As a one-stop conveyor engineering manufacturer, we also provide excellent solutions for material handling problems and after-sales service for various applications.

2. Excellent customer service

We specialize in the production of heavy-duty (nylon, EP polyester, EE, NN) multi-ply fabric core rubber conveyor belts, herringbone conveyor belts, circular conveyor belts, steel cord conveyor belts, corrugated edge conveyor belts, bucket elevator conveyor belts, etc. As a leading Chinese conveyor belt manufacturer, supplier, and exporter, we are committed to providing customers with high-quality conveyor belts and professional services. Fang Nuo Company has grown rapidly through innovation and professional services, and we are eager to expand our domestic and international markets!

3. Customization

We support OEM and meet all your needs, regardless of size. Even if you only have an idea, we will help you realize it.

We have a strong R&D team that can develop and produce products according to customer-provided drawings or samples.

4. Cost-effectiveness

Same quality, lower price; same price, better quality. Fast production cycle, short lead time, high efficiency, durability, and reliable quality. We are committed to the mid-to-high-end market, and our products meet international standards.

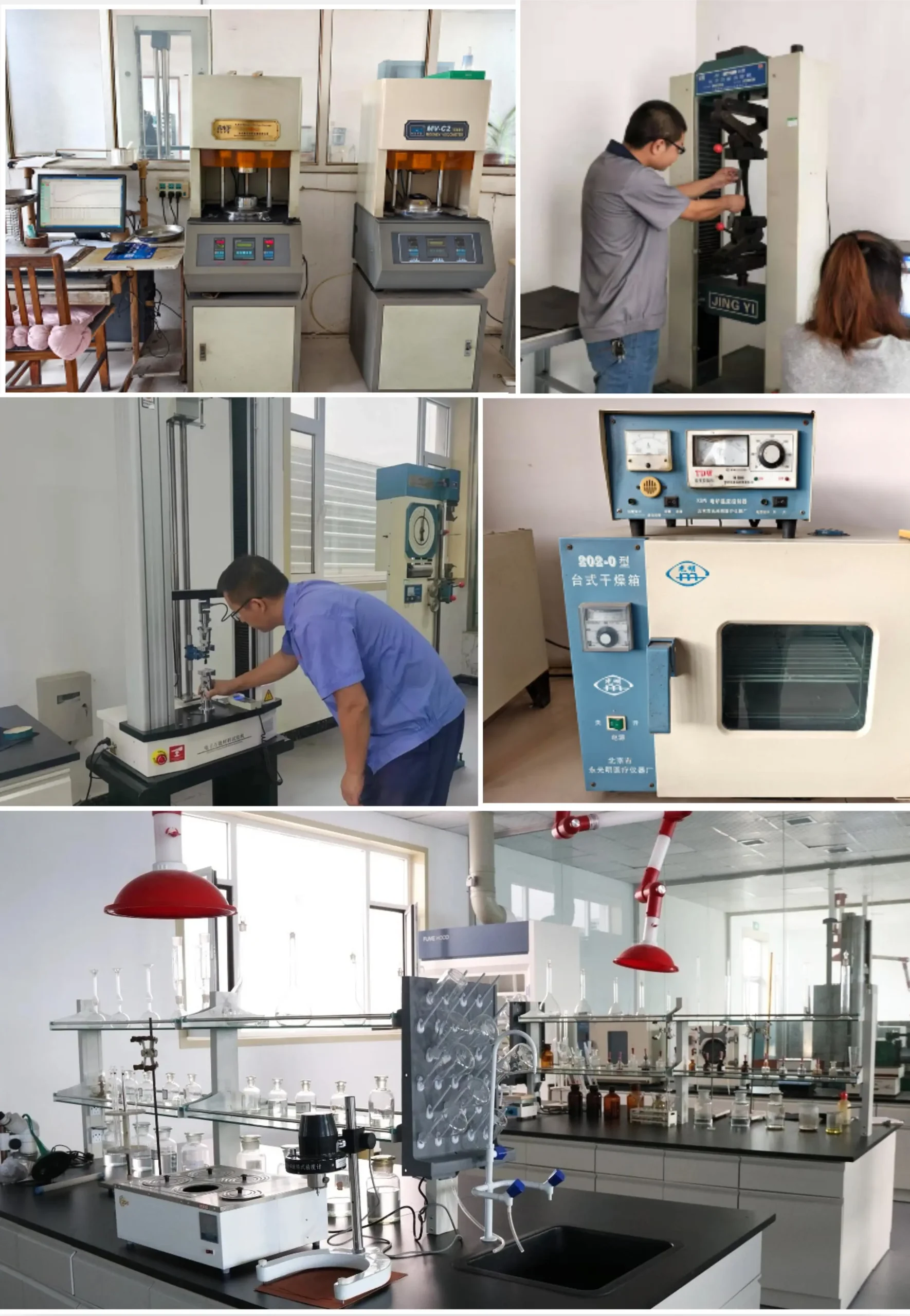

Professional testing equipment (conveyor belt testing laboratory)
