High-angle bucket elevator belt

Our large-scale bucket elevator belts have a rigorous quality control system designed throughout the production process: raw materials – semi-finished products – finished products. Each step of the semi-finished products must be tested before proceeding to the next processing step. Non-conforming parts are not allowed to proceed to the next processing step.

ClassificationHigh-angle bucket elevator belt

Whatsapp+86 18395653111

Mailboxcolin@bestbelting.com

Details

Uses

Due to site limitations or the need to lift materials at a large inclination angle, in order to prevent the scattering of conveyed materials, it is suitable for conveying materials under an angle (0-90°) condition.

We design and manufacture rubber conveyor belts. Most of our clients have different needs, and we strive to meet these needs by manufacturing custom belts.

The following are the industries we serve;

• Aggregates and Mining • Cement • Steel/Metal • Energy/Thermal Power Generation • Fertilizer/Chemicals • Ports • Agriculture • Waste/Recycling

Quality Control

• Our large-scale bucket elevator belts have a strict quality control system designed throughout the production process: raw materials-semi-finished products-finished products. Each step of the semi-finished product must be tested before proceeding to the next processing step. Non-conforming parts are not allowed to proceed to the next processing step.
• All finished products must be tested, and only qualified products can leave the factory.

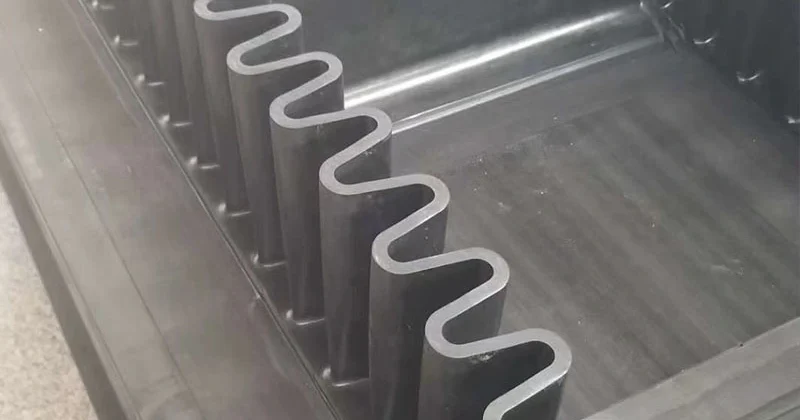

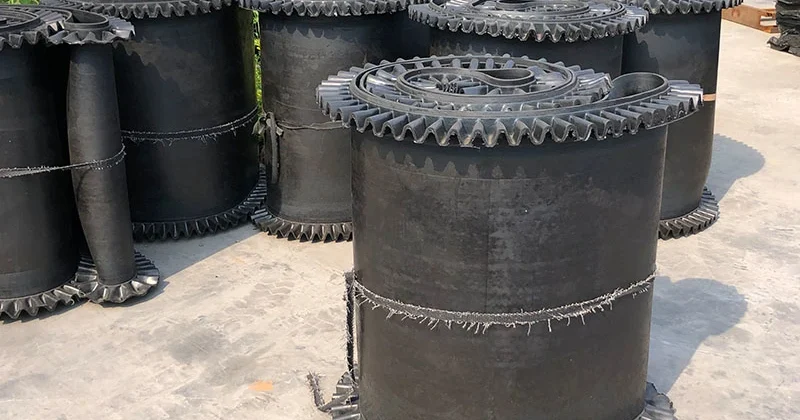

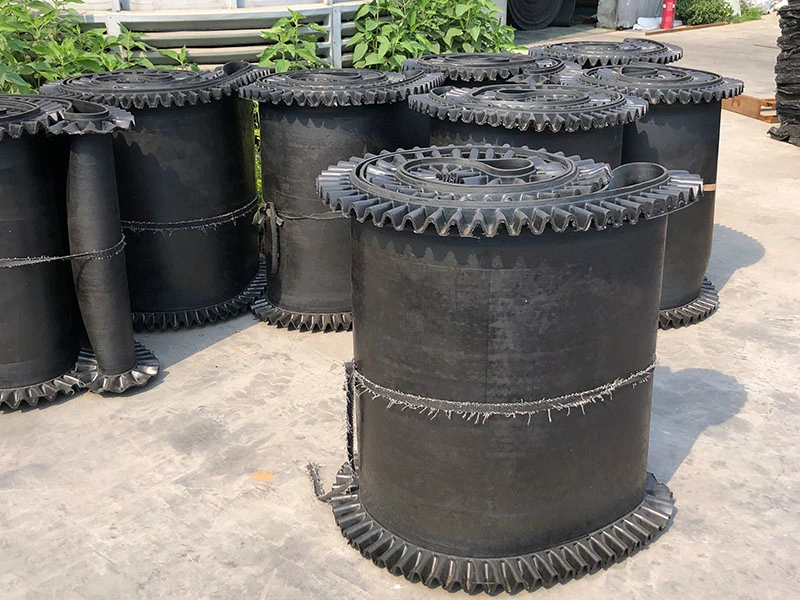

Product Photos

Side Technical Data

模型	类型	身高（Sh）	侧壁底部宽度（Sw）	投球 (P)	重量（公斤/米）
	标准	40	30	25	0.58
		60	50	40	1.55
		80			1.82
		100			2.20
		120			2.65
	纺织增强	120	75	63.2	3.20
		160			4.76
		200			6.45
		240			7.50
		250			6.37
		280			8.90
		300			9.33
	高清	300	100	83	12.10
		400			18.72
		500			16.80

Partition Technical Data

Type	Height (mm)	Bottom Width (mm)
C55	55	75
C75	75	90
C90	90	110
C110	110	110
T40	40	70
T55	55	80
T75	75	100
T90	90	110
T110	110	110
T140	140	160
T180	180	160
TC75	75	85
TC90	90	110
TC110	110	110
TC140	140	150
TC180	180	150
TC230	230	160
TC280	280	160
TCS230	230	105
TCS280	280	105
TCS360	360	200
TCS470	470	200

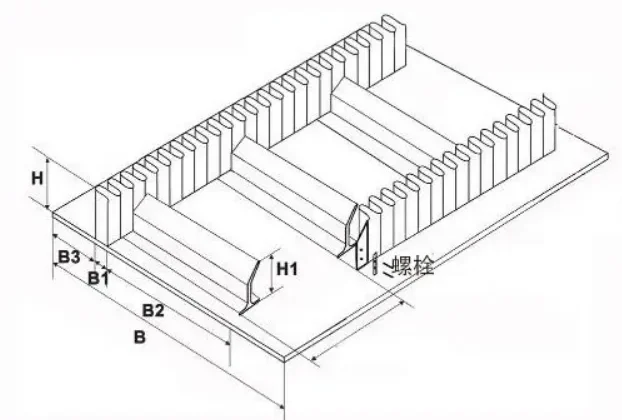

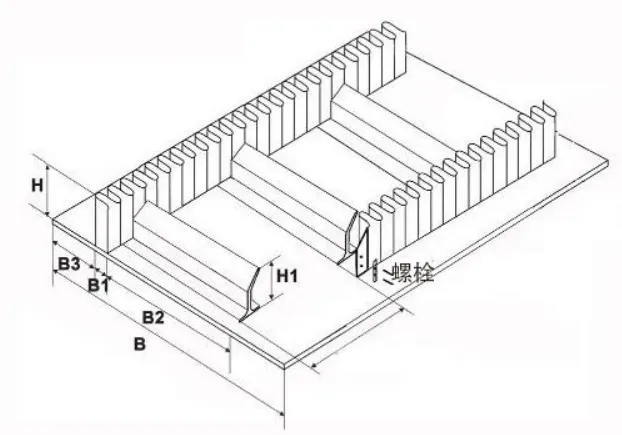

Wavy Edge High Angle Conveyor Belt Data Table

Base Belt Width B(mm)	Sidewall Height H(mm)	Lug Height H1(mm)	Bf(mm)	Br(mm)	R(mm)
300	40	35	25	180	35
	60	55	50	120	40
	80	75
400	60	55	50	180	60
	80	75
	100	90
500	80	75	50	250	75
	100	90
	120	110
650	100	90	50	350	100
	120	110
	160	140	75	300
800	120	110	50	460	120
	160	140	75	410
	200	180
1000	160	140	75	550	150
	200	180
	240	220
1200	160	140	75	690	180
	200	180
	240	220
	300	280	105	630
1400	200	180	75	830	210
	240	220
	300	280	105	770
	400	360
1600	200	180	75	970	240
	240	220
	300	280	105	910
	400	360
1800	240	220	75	1110	270
	300	280	105	1050
	400	360
	500	460	125	1010

Fabric Core Data

Total Tensile Strength	Fabric Type	Top Cover Thickness	Bottom Cover Thickness
(N/mm)		(mm)	(mm)
200-800	Nylon/EP Polyester/NN/EE-100	3.0/4.5/6.0	1.5/3.0
315-1250	Nylon/EP Polyester/NN/EE-150	3.0/4.5/6.0	1.5/3.0
400-1500	Nylon/EP Polyester/NN/EE-200	3.0/4.5/6.0	1.5/3.0
500-2000	Nylon/EP Polyester/NN/EE-250	3.0/4.5/6.0	1.5/3.0
500-2000	Nylon/EP Polyester/NN/EE-300	3.0/4.5/6.0	1.5/3.0
630-2500	Nylon/EP Polyester/NN/EE-400	3.0/4.5/6.0	1.5/3.0

Cover Rubber Quality/Grade Standard Performance Parameters

Item	Rubber Grade (DIN22102)
Item	W	X	Y	Z
Tensile Strength (N/mm2)>=	18	25	20	15
Elongation at Break (%) ≥	400	450	400	350
Abrasion Resistance (mm3)<=	90	120	150	250

Packaging and transportation

Packaging Details

1. Waterproof nylon packaging, with steel pallet at the bottom.

2. Standard and suitable export packaging.

3. According to customer requirements.

Frequently Asked Questions

1. Can I customize conveyor belts to meet my business needs?

►Yes, we are a professional custom conveyor belt manufacturer ， focused on customized conveyor belt solutions. We work closely with our customers to customize products such as belt width, thickness, material composition, and various qualities according to their specific operational requirements. This ensures that our conveyor belts perform optimally in different industrial environments.

2. What payment methods do you accept?

►We offer flexible payment methods to meet customer needs. Commonly used payment methods include Telegraphic Transfer (T/T) and Letter of Credit (L/C) ，especially for large orders. We can also agree on other payment methods based on mutual agreement.

3. What after-sales service do you provide? And how do you guarantee your quality?

►We provide comprehensive after-sales service support, including 24/7 technical support, installation assistance, and maintenance advice 。We also provide regular follow-up services to ensure smooth product operation and long-term satisfaction! We have an in-house testing laboratory and adhere to the principle of qualified products before shipment! For many years, we have been one of the suppliers to internationally renowned companies, and our customers are located in various countries and regions, including mining, stone crushing, sand washing, ports, power, metallurgy, chemical, coal, steel plants, cement plants, and construction industries. Our excellent quality is widely praised.

4. How do I place an order? What is the delivery time?

►You can contact us via WeChat, WhatsApp, phone, email, and website to place an order. For regular models, 5-7 days delivery ，the delivery time for other customized products depends on the product type and customization requirements.

5. Can I get samples for inspection and testing?

Yes, samples can be sent for testing before bulk orders. Samples are created according to customer requirements, allowing customers to evaluate the performance of the belts and rollers.

6. Can I print my logo on the conveyor belt products?

Yes, we are a customized manufacturer, supporting processing, OEM, please inform us of your logo or design before mass production.

A strong team with rich experience

Our global sales and R&D teams go beyond transactional relationships, providing personalized support at every stage of the customer journey.

First-class testing equipment

We have in-house testing equipment to ensure that every conveyor belt we produce undergoes rigorous quality control. From tensile strength and wear resistance to high-temperature resistance, we can meet your requirements.

Advanced and first-class production equipment

We have invested heavily in advanced conveyor belt production lines, including automated systems that ensure the precision, reliability, and scalability of our products.

Successful customer collaborations

We have established long-term cooperative relationships with clients in the cement, mining, power plant, chemical, steel, coal, mining, and grain industries, fully demonstrating the trust and confidence these enterprises have in us.

Why Choose Our Conveyor Belts?

1. Engineering design and consulting

Fangnuo Rubber Conveyor Belt is one of the best custom belt manufacturers in China. Our conveyor belts are ideal for handling various heavy and abrasive materials for bulk material handling, successfully meeting the needs of various industries, including stone crushing and screening, sand washing, fertilizer, grain conveying, steel plants, power plants, cement plants, metallurgy, coal, ports and docks, construction, and more. As a one-stop conveyor engineering manufacturer, we also provide excellent solutions for conveying material problems and after-sales service for various applications.

2. Excellent customer service

We specialize in producing heavy-duty (nylon, EP polyester, EE, NN) multi-layer fabric core rubber conveyor belts, steel cord conveyor belts, corrugated edge conveyor belts, bucket elevator conveyor belts, herringbone conveyor belts, and circular conveyor belts. As a high-quality conveyor belt manufacturer, supplier, and exporter in China, we focus on providing customers with high-quality conveyor belts and professional services. Fangnuo Company has grown rapidly through innovation and professional services, and we are eager to expand our domestic and international markets!

3. Customization

OEM supported, meeting all your needs, regardless of size, even if you only have an idea, we will help you realize it.

We have a strong R&D team that can develop and produce products based on drawings or samples provided by customers.

4. Cost-effectiveness

Same quality, lower price; same price, better quality; fast production cycle; short time; efficient and durable; reliable quality. We are based in the mid-to-high-end market, and our products meet international standards.
